SIEMENS 6EP3434-7SB00-3AX0 SITOP PSU6200 24 V/10 A stabilized power supply input: 400 - 500 V AC output: 24 V / 10 A DC
The Siemens 6EP3434-7SB00-3AX0 is a SITOP PSU6200 stabilized power supply unit that provides a 24V DC, 10A output. This model is designed to accept a 3-phase AC input voltage range of 400-500V.
Here are the key details about the Siemens 6EP3434-7SB00-3AX0 SITOP PSU6200 power supply:
1. Overview:
- The 6EP3434-7SB00-3AX0 is a SITOP PSU6200 stabilized power supply unit from Siemens.
- It is designed to provide a regulated 24V DC, 10A output.
- The power supply can accept a 3-phase AC input voltage range of 400-500V.
2. Technical Specifications:
- Model: 6EP3434-7SB00-3AX0
- Output Voltage: 24V DC
- Output Current: 10A
- Input Voltage: 400-500V AC, 3-phase
- Input Frequency: 47-63 Hz
- Efficiency: Typically 93%
- Dimensions (W x H x D): 90 mm x 125 mm x 125 mm
- Mounting: DIN rail mounting
3. Features and Benefits:
- Provides a high-power, stable and regulated 24V DC power supply with a 10A current capacity.
- Designed for 3-phase AC input voltages in the range of 400-500V, suitable for industrial applications.
- Compact and space-saving design for easy installation.
- DIN rail mounting for flexible placement in control cabinets or enclosures.
- Robust design and high efficiency for reliable operation in industrial environments.
- Overload, short-circuit, and overvoltage protection for enhanced safety.
- Suitable for powering a wide range of industrial automation and control systems.
4. Applications:
- The Siemens 6EP3434-7SB00-3AX0 SITOP PSU6200 power supply is commonly used in the following applications:
- Industrial automation and control systems with high-power 24V DC requirements.
- Factory automation and process control equipment.
- Heavy-duty industrial machinery and equipment.
- Manufacturing facilities with 3-phase AC power infrastructure.
- Powering multiple devices or components that require a high-current 24V DC supply from a 3-phase AC source.
5. Integration and Configuration:
- The SITOP PSU6200 power supply is designed for easy integration into industrial control systems.
- It can be mounted on a DIN rail within a control cabinet or enclosure, providing a regulated 24V DC power source for connected devices and equipment.
- No additional configuration is typically required, as the power supply provides a simple plug-and-play solution.
6. Certifications and Approvals:
- The Siemens 6EP3434-7SB00-3AX0 SITOP PSU6200 power supply is designed to meet relevant safety and quality standards for industrial applications, including CE, UL, and other certifications.
- Additional certifications may be available based on specific regional or application requirements.
For more detailed information or to discuss specific application requirements, please feel free to reach out to me.
| Product |
| Article Number | 6EP3434-7SB00-3AX0 |
| Product Description | SITOP PSU6200 24 V/10 A stabilized power supply input: 400 - 500 V AC output: 24 V / 10 A DC with diagnostics interface |
| Product family | 3-phase, 24 V DC |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data |
| Price Group | 56P |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help page) |
| Metal Factor | see also metal factor (further details are available on the help page) |
| Delivery information |
| Export Control Regulations | AL : N / ECCN : 9N9999 |
| Estimated dispatch time (Working Days) | 1 Day(s) |
| Net Weight (kg) | 0,900 Kg |
| Packaging Dimension | 210,00 x 190,00 x 80,00 |
| Package size unit of measure | MM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4025515155324 |
| UPC | 195125025554 |
| Commodity Code | 85044083 |
| LKZ_FDB/ CatalogID | KT10-PE |
| Product Group | 4D71 |
| Group Code | R315 |
| Country of origin | Austria |
|
|

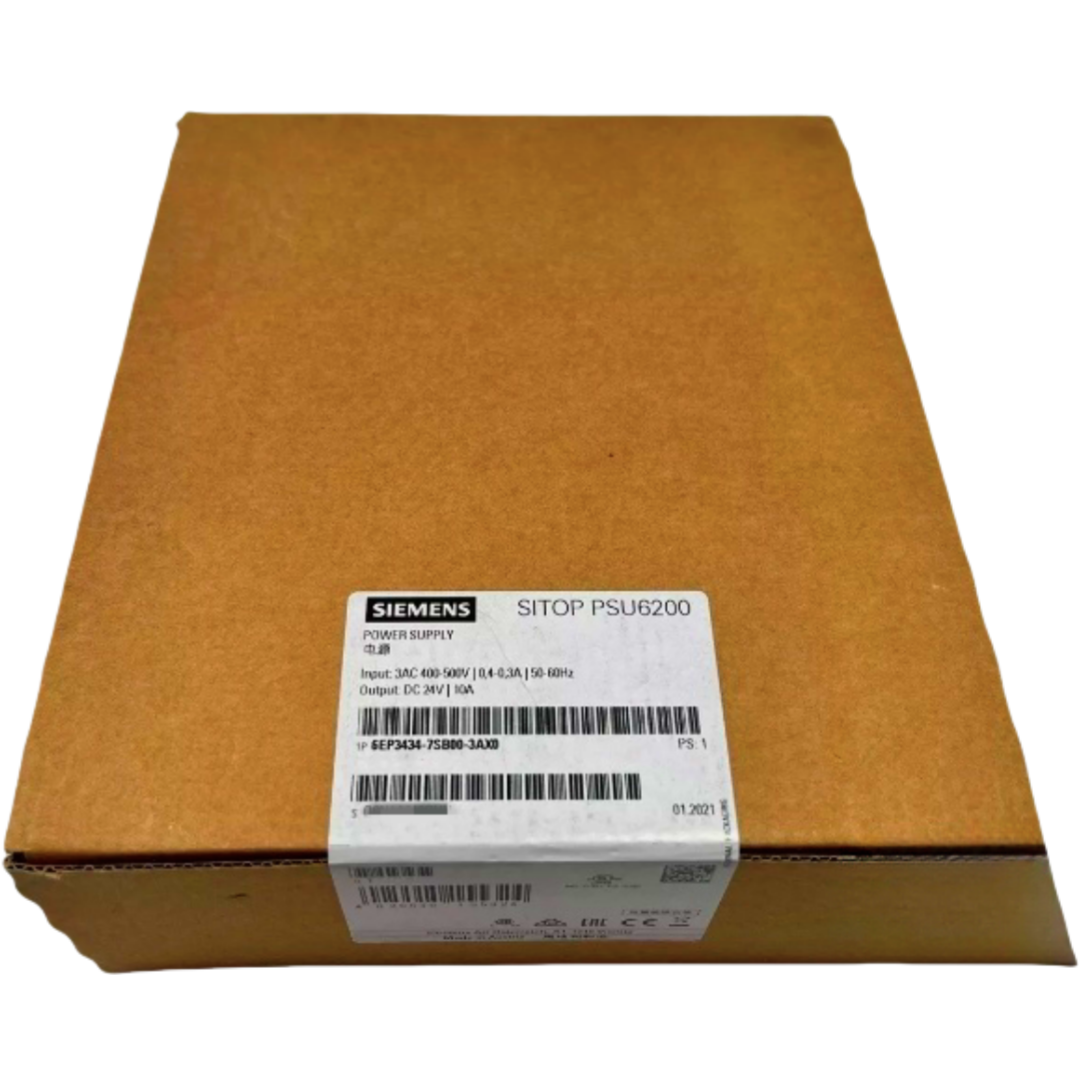

SIEMENS 6EP3434-7SB00-3AX0 SITOP PSU6200 24 V/10 A stabilized power supply input: 400 - 500 V AC output: 24 V / 10 A DC Images
|
